A CO2 chamber for anesthetizing Drosophila.

Melo Sene, Fabio,1 and Maura Helena Manfrin2.  1Departamento de Genética FMRP Universidade de São Paulo - Ribeirão Preto - Brasil - email =;  2Departamento de Biologia FFCLRP - Universidade de São Paulo - Ribeirão Preto - Brasil - email =

            Carbon dioxide can be used to anesthetize Drosophila.  It has many advantages over ether because it is safer to use (less dangerous) and is also much less toxic, both for the researcher and for the flies.

To facilitate the use of CO2, we developed a transparent chamber that can be placed on a stereomicroscope stage, is easy to handle, and maintains the flies anesthetized during the time that they are being examined and handled.

A descriptive diagram of the chamber, with the dimensions, is shown in Figures 1 and 2.  It’s made of 0.5 cm thick Plexiglas and has an (open) upper compartment (Figure 1 and 2 - A) where a glass plate can be placed with the already anesthetized flies.  This plate should be 2 cm smaller, both in length and width, than the upper compartment, to facilitate handling.  The lateral walls of the upper compartment have holes (Figure 1 and 2 - B), through which the CO2 flows from the lower chamber.  The lower compartment (Figure 1 and 2 - C) is closed, with an opening for the CO2 tube (Figure 1 and 2 - D).  The CO2 penetrates into the lower compartment and then flows into the upper compartment through small holes (Figure 1 and 2 - B) in the internal walls of the upper compartment.  An important detail is that these holes are inclined downward, so that the gas is directed down, towards the bottom of the upper compartment.  Since CO2 is heavier than air, the upper compartment becomes filled with this gas.


LEAD Technologies Inc. V1.01

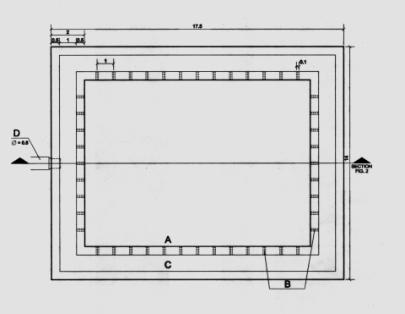

Figure1.  Upper view of the CO2 chamber.  The measurements are given in centimeters.  The "section" line shows where the vertical cross section was made, giving the view shown in Figure 2.  A = upper compartment; B = holes; C = lower compartment; D = insertion of the CO2 tube.


LEAD Technologies Inc. V1.01

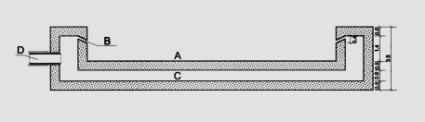

Figure 2.  Cross section at line indicated in Figure 1.  Measurements are given in centimeters.  A = upper compartment; B = holes; C = lower compartment; D = insertion of the CO2 tube.

The quantity of CO2 that flows through the chamber is controlled by the valve on the gas cylinder.  If a more concentrated dose of CO2 is required, the upper compartment can be covered with a glass plate, totally covering the apparatus.

In order to anesthetize the flies before placing them on the glass plate a simple hollow needle, normally used for filling balls (basketballs, volleyballs, etc.), can be hooked up to the hose from the CO2 bottle and introduced into the Drosophila culture vial, between the glass wall and the stopper.

            Acknowledgments:  We thank Fabiana Soares Sene for preparing the figures.
